Quantitative Characterization of Phase Volume Fraction by EBSD Technique
  • Present EBSD pattern quality technique was combined with TEM and nano indentation to the characterization of complex microstructure,
  • especially in high strength DP, TRIP steel.


 EBSD pattern quality map, Phase map and TEM HAADF images
2
Development of Giga scale low alloy high strength TWIP steel


  • The microstructure related mechanical properties of Fe-Mn-N steel were investigated and stacking fault energy which effects twin generation
  • were calculated using dislocation node.

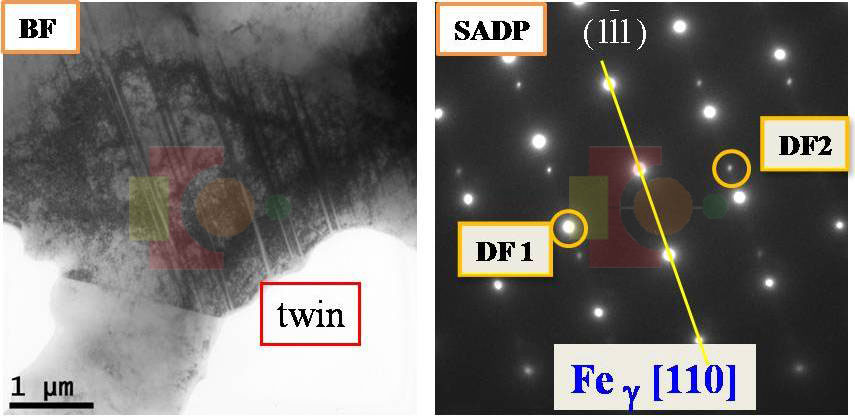

Twin image in 20% strained Fe-Mn steel
3
Effect of Mg addition in the quasicrystalline-reinforced aluminum alloy composites fabricated by mechanical alloying
  • The addition of magnesium enhances the compressive yield strength of Quasicrystalline-reinforced aluminum alloy composite.
  • The main contribution of the strengthening is the dispersion hardening from the Al2CuMg phase in the Al matrix.








TEM image of the Al2CuMg phase  Fe, Cu EDS map of the composite
4
A Study on diffusion barrier materials and electromigration of Cu
  • There are many materials which have been studied and developed for being a diffusion barrier against Cu, for example, nitrides of transition metals such as TaN, TiN, TiB2, and so on.
  • Electromigration is a major reliability concern in intergrated circuits due to the aggressive scaling of interconnect dimensions and the increasing current densities at operation.


 PVD system for the metal-film growing
5
Improving soft magnetic property of FeSiBCuNb alloy in high frequency region
  • Partial crystallization and reduction of magnetostriction by adding Nb, Cr, Mo, and Cu
  • TEM analysis of nanocrystalline phase during annealing













 Elemental distribution of FeSiBCuNb alloy

6
Microstructural changes of PZT with Ti/Zr ratio prepared sol-gel method
  • Magnetic properties depending on the microstructure of PZT
  • Observation of Pb depletion region in Ti/Zr ratio = 52/48 and 70/30




 Phase changes of PZT according to Ti/Zr ratio
7
Analysis of intermediate-range arrangement of high strength ceramic fiber
  • High quality ceramic fibre can be fabricated by defect control.
  • Measurment of nanovoid-density in the amorphous ceramic fiber dependent on the fiber diameter




 Tensile test at high temperature  SEM images of Cu electroplated Silica fibers
